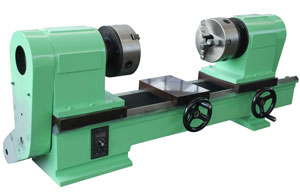

Straight high precision antiwear Guide Rail and slider, chain synchronous drive.
HT250 casting overall, increases the stability of machine tool.
| Distance of spindle center to guide rail: | 230mm |
| Distance between spindle chuck plane: | 400mm |
| Spindle aperture: | 40mm |
| Three claws chuck workable diameter: | 10-100mm |
| Rotate speed of principal axis: | 20-200r/min |
| 主軸中心主托板工作臺平面距離： |
200mm |
| Power of main motor: | 220V 0.2KW |
| Lathe length: | 1000mm |
| Lathe size: | 1100×400×500mm |
| Weight: | 180Kg |
| 左右軸心與導軌平行度: | 0.05mm |
| 左右主軸同心度: | 0.05mm |
| 左右主軸跳動(dòng): | +0.03mm |
